Meritor HVS (India) Limited
Product Information

MT36 610

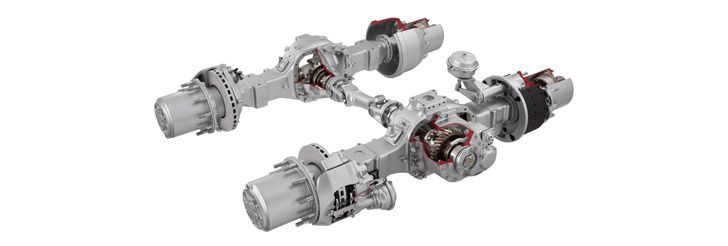

The MT36 610 Hub reduction hypoid Tandem drive axle is designed for on/off highway operation for Haulage & Vocational Truck applications. With a load rating of up to 35 Tonnes the axle supports vehicles with GVW/GCW of up to 70/100 Tonnes respectively. The axle is available in wide number of ratios varying from 5.4-7.2 (Wheelend ratio 3.46). Featuring a cast housing the axle offers unique benefits by the virtue of having a hub reduction. Increased ground clearance, improved life and high torque handling ability allows it to perform in conditions where a single reduction axle cannot. This axle is ideally suited for Tractor, Tipper, deep mining and off-highway applications and is available with an InterAxle Differential Lock (IAD) and Driver Controlled Differential Lock (DCDL) for tremendous off-roading capability.
