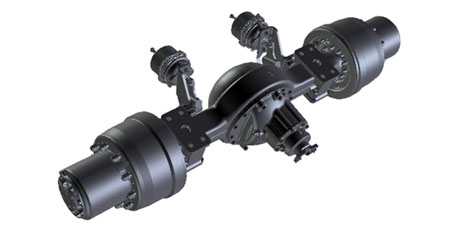

MS13 1495_HR

The MS13 1495 Hub reduction hypoid Tandem drive axle is designed for off highway operation for Vocational Cranes and Deep mining applications. With a load rating of up to 26 Tonnes the axle supports vehicles with GVW/GCW of up to 32/54 Tonnes respectively. The axle is available in wide number of ratios varying from 20.2 – 23.6 (Wheelend ratio 3.46).
Featuring a fabricated housing the axle offers unique benefits by the virtue of having a hub reduction. Improved life and high torque handling ability allows it to perform in conditions where a single reduction axle cannot. This axle is ideally suited for deep mining and off-highway applications and is available with an InterAxle Differential Lock (IAD) and Driver Controlled Differential Lock (DCDL) for tremendous off-roading capability.
