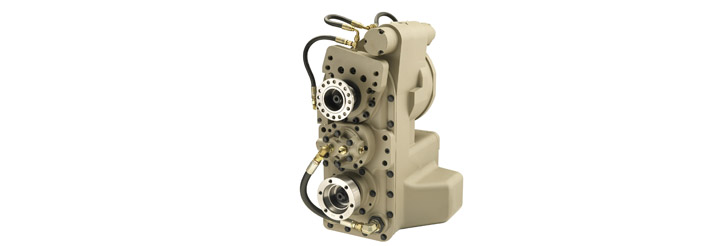

Transfer Case
Meritor’s latest range of transfer case offers the best solution for Joint Light Tactical Vehicles (JLTV) applications to minimize weight and improve packaging. Engineered and built for the extreme demands of the military duty cycle and currently in use on the Future Tactical Track System-Utility Vehicle (FTTS-UV). Efficient 2-speed, 3-shaft configuration with Integral 50/50 differential with lockout & better operational security and diagnostics provided by a wide selection of sensors at all three shift positions – differential lock engagement, temperature sensor and oil level sensor provide reliability and maximum off-road ability.

The Aluminum housing can be modified for each vehicle to improve packaging or driveline angles. Three shift positions, including neutral and air-engaged and two-speed design with 1:1 high ratio and deep 2.75:1 low ratio (air-engaged) – enables a fast top speed in high range while also providing high torque in low range
